CaseDetails

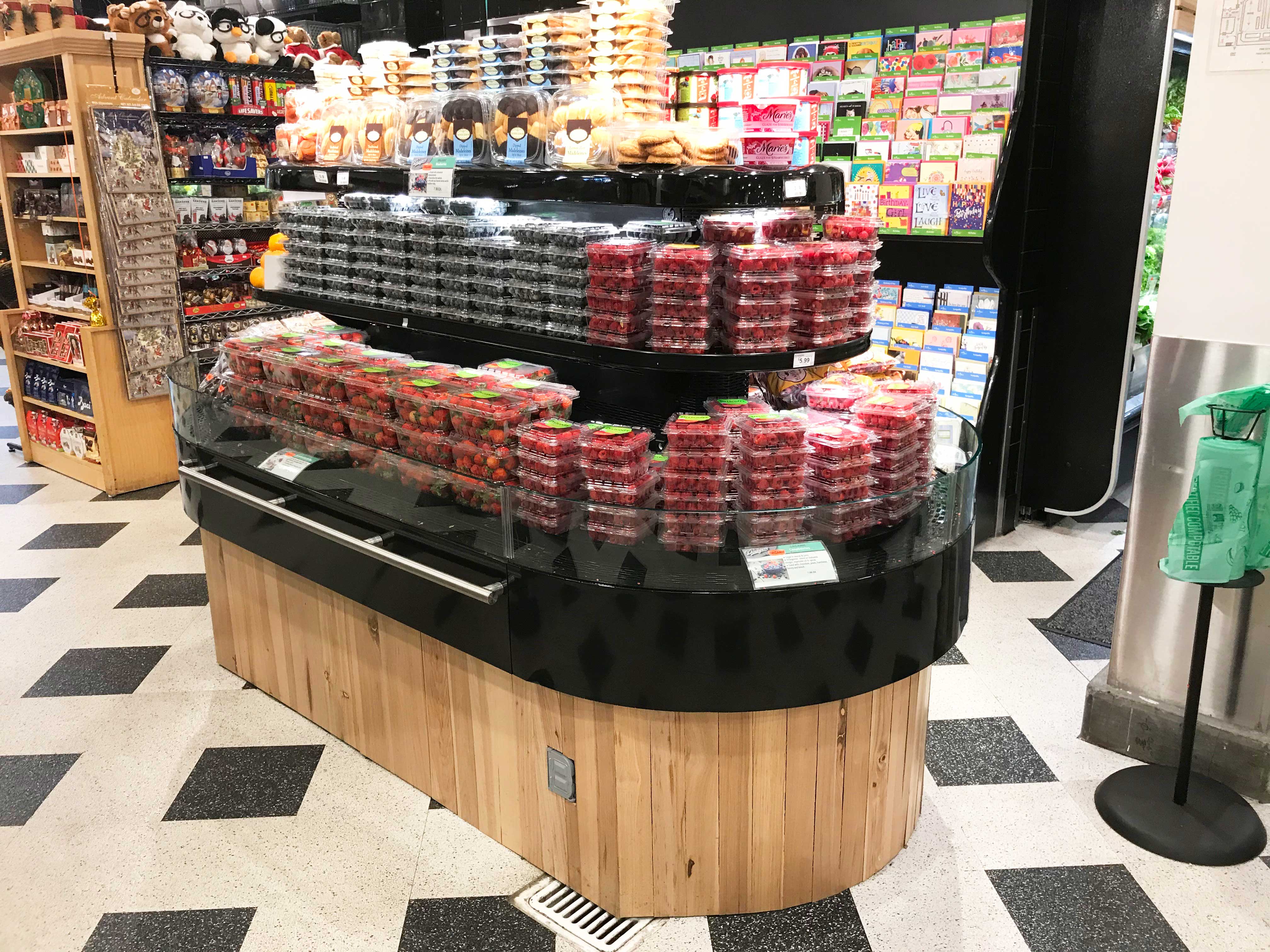

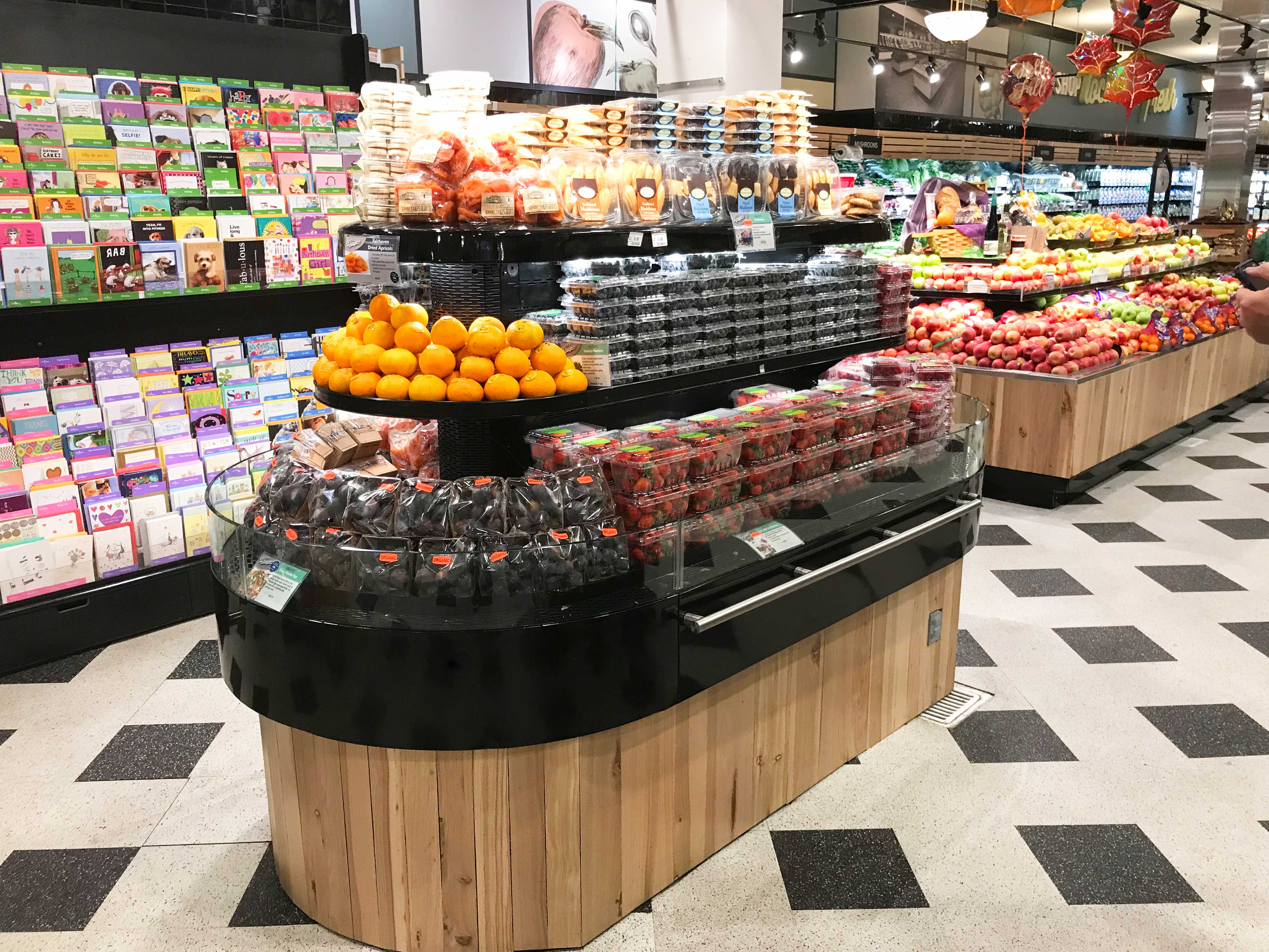

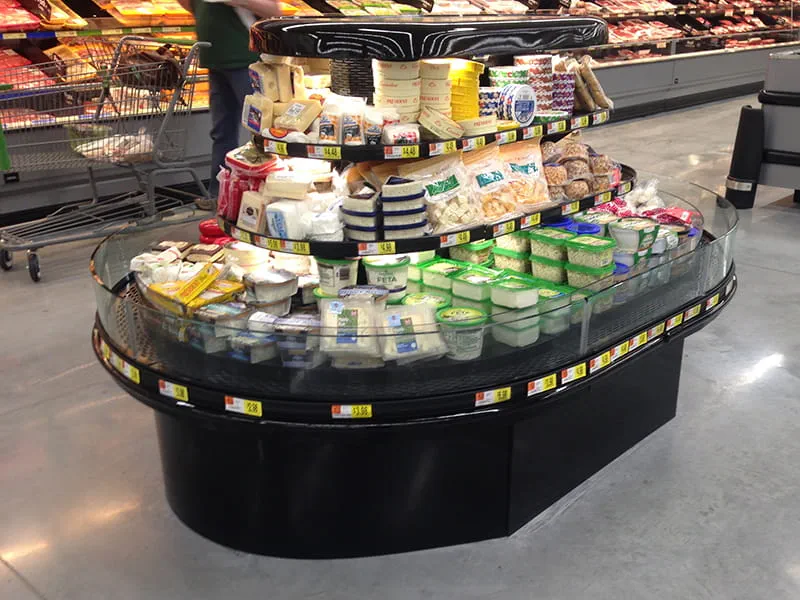

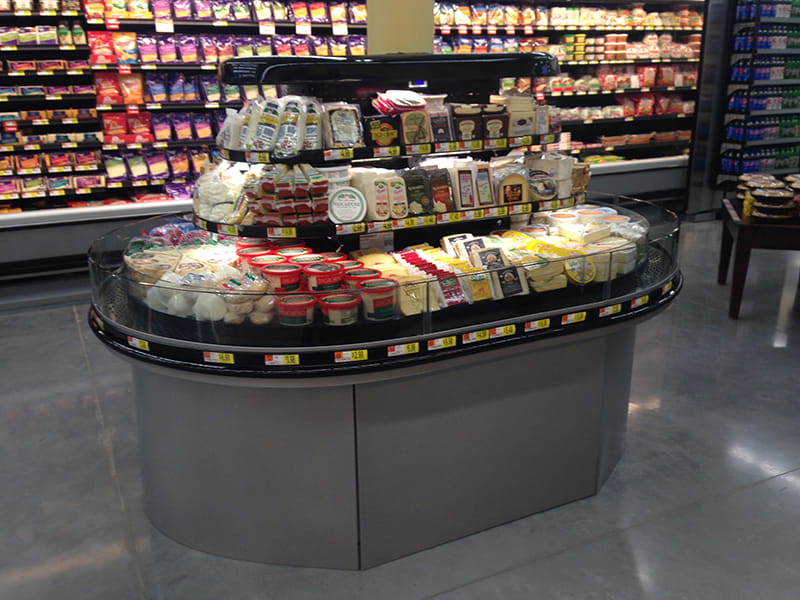

​​​TY3-5 Three Level, 5’ width Self-Service Island Merchandiser

Lengths

Remote:  7' (TY3-5X-7I-R), 9' (TY3-5X-9I-R), 11' (TY3-5X-11I-R),
               13' (TY3-5X-13I-R), 15' (TY3-5X-15I-R), 17' (TY3-5X-17I-R)

Self-Contained: 7' (TY3-5X-7I-S)

Features.

• Painted exterior
• Tempered radius glass perimeter
• LED EcoShine II Plus canopy lighting
• Black metal deck and back wall
• 2" black vinyl cart bumper
• Energy efficient fan motors.
• Dual forced air refrigeration coils
• Hussmann colors
• DOE and ETL approved, and FDA compliant
• R448A regulatory-compliant low GWP refrigerant condensing unit (self-contained)
• Evap pan floor sink not required (self-contained)
• Digital thermostat control (self-contained)
• Please reference Color Chart​ for choice of standard Hussmann paint and finish options

Options.

• Optional base heights
• Special stainless steel tube bumper
• 8”, 10”, 12”, 14” shelves
• Black angled product display inserts
• LED shelf lighting
• Solid surface top inlay
• Stainless or white interior
• Liquid line shut-off valve
• Custom lengths and options* (consult your Hussmann sales representative)

* Some optional features may need to be certified by UL, NSF, and/or other 3rd party certification agencies. Contact Hussmann for verification or questions for availability.

NOTE: These merchandisers are designed for use in stores when temperature and humidity do not exceed 75°F and 55% R.H. We reserve the right to change or revise specifications and product design in connection with any feature of our products. Such changes do not entitle the buyer to corresponding changes, improvements, additions, or replacements for equipment previously sold or shipped.

For additional resources, contact your representative or visit www.hussmann.com.​

† Only lighting configurations that are compliant with the U.S. Dept. of Energy (DOE) 2017 regulation are available for sale for use in the U.S.A.​
