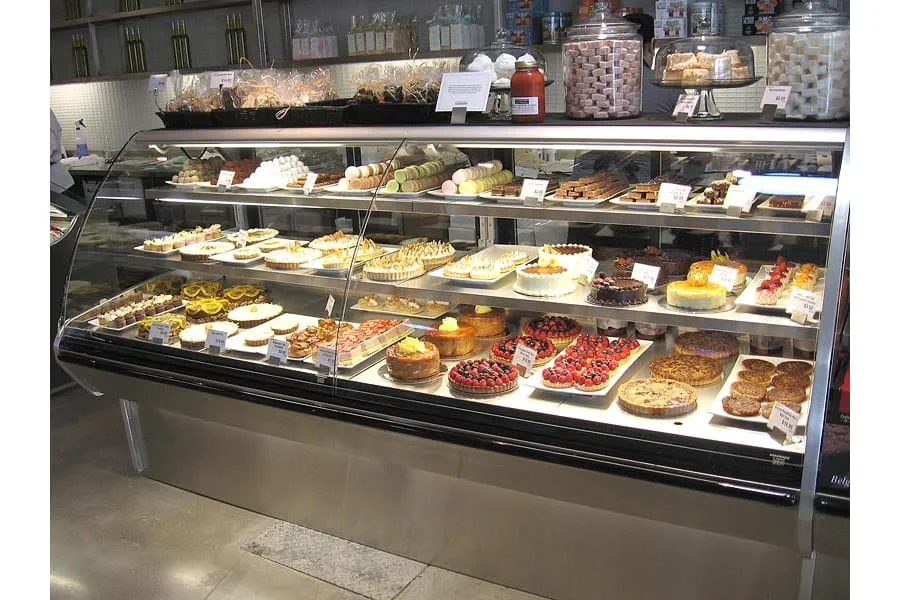

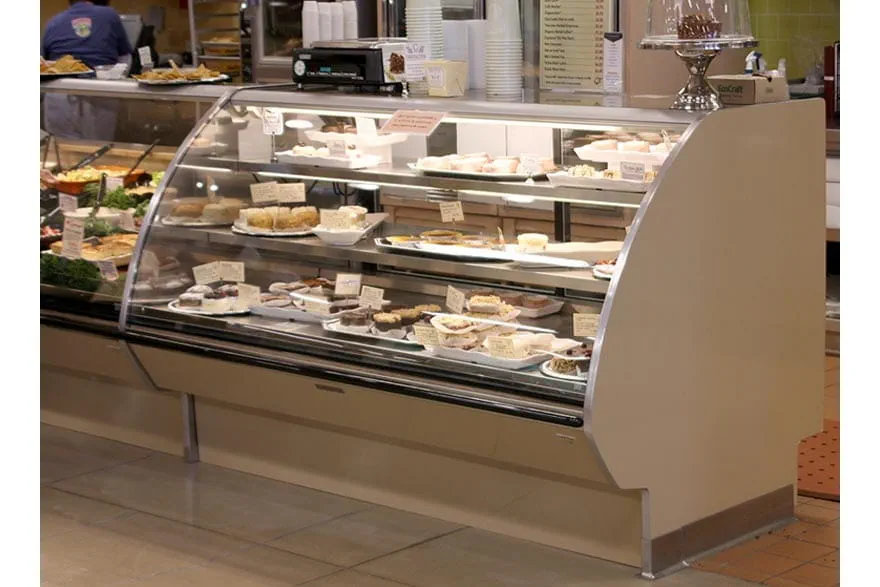

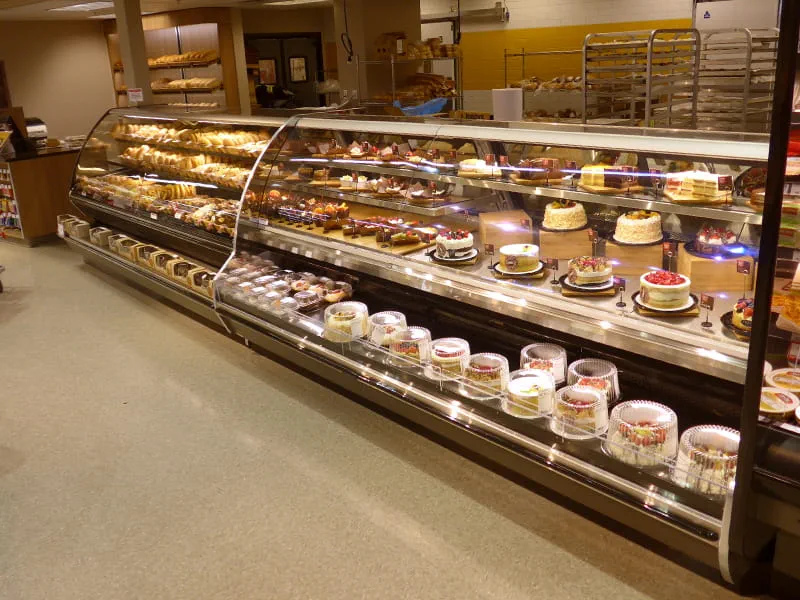

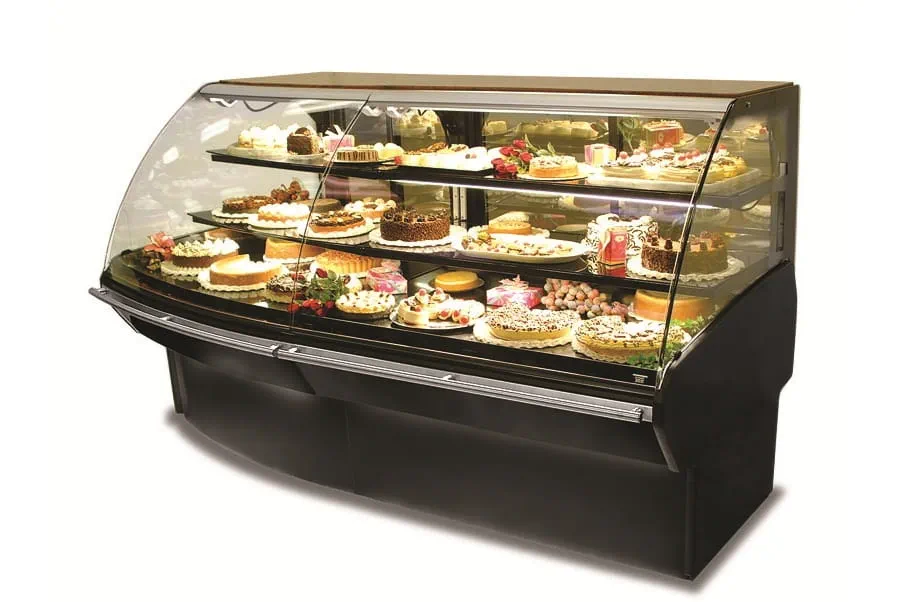

​Q3-BC Service Merchandiser with Curved Glass – Refrigerated or Dry Multi-Deck Bakery

Lengths

• 4', 5', 6', 8', 10', and 12'

Wedges

• 22° inside and outside
• 45° inside and outside

Features and Benefits

• Tempered, non-glare, lift-up curved front clear glass
• Large clear glass sliding rear doors
• Silver anodized glass hardware
• Black thermoplastic front ledge
• Clear glass top
• Stainless steel interior
• Snap-on stainless steel lower rear panel
• Snap-on painted front panel
• Black vinyl cart bumper
• Double row of LED canopy lights
• Energy efficient fans (Refrigerated)
• Solar digital thermometer (Refrigerated)
• Front glass heated air sweep (Refrigerated)
• Thermostat and suction stop installed
• Please reference color chart for choice of standard Hussmann paint and finish options (www.hussmann.com)

Options* Include

• LED lighted shelves 16" & 20" (glass, stainless steel or wire)
• LED ledge lights †
• Clear glass top †
• Mirrored rear doors
• Thermoplastic wrapping boards with adjustable riser
• View or solid ends
• Mirror bright interior end panels
• Stainless steel pedestals
• Mirrored rear sliding doors
• Top mounted scale stand extensions with dedicated scale outlet and Cat 5 scale connections
• 15 amp GFCI duplex outlet
• Liquid line shut-off hand valve
• Custom lengths and options*
• Special interior and exterior finishes* (consult your Hussmann sales representative)

Matching Case Lines

• Single-Deck Service Deli Curved or Straight Glass: Q1-DC or Q1-DS
• Service Hot Curved or Straight Glass: QHC or QHS
• Service Seafood Curved or Straight Glass: Q1-FC or Q1-FS
• Multi-Deck Service Deli Curved or Straight Glass: Q3-DC or Q3-DS
• Multi-Deck Service Bakery Curved or Straight Glass: Q3-BC or Q3-BS
• Multi-Deck Self-Service: Q3-SS or Q4-SS
• Multi-Deck Self-Service Front with Service Prep Top: Q3-SP

a Pilkington OptiView product literature.

* Some optional features may need to be certified by UL, NSF, and/or other 3rd party certification agencies. Contact Hussmann for verification or questions for availability.

† Only lighting configurations that are compliant with the U.S. Dept. of Energy (DOE) 2017 regulation are available for sale for use in the U.S.A.

NOTE: These merchandisers are designed for use in stores when temperature and humidity do not exceed 75°F and 55% R.H. We reserve the right to change or revise specifications and product design in connection with any feature of our products. Such changes do not entitle the buyer to corresponding changes, improvements, additions, or replacements for equipment previously sold or shipped.​
